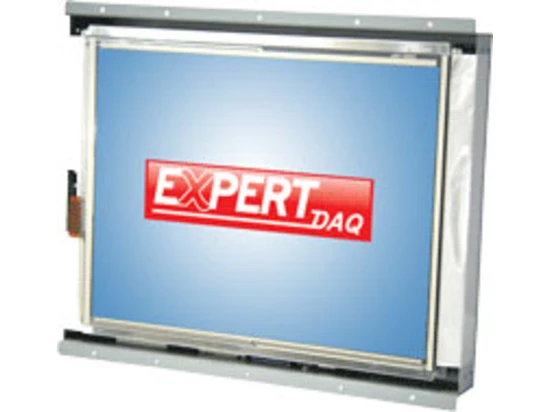

EX91159
Angebot anfordern
"EX91159 Robuster 15" Open-Frame Monitor. Resistiv oder kapazitiv. USB oder RS232 Interface. Für raue Umgebungsbedingungen. Aluminium oder Edelstahl Front"
- Verkauf und Versand durch : acceed GmbH
- Verfügbarkeit: In der Regel innerhalb von 1 Woche versandfertig
Die TOPSCCC Open frame Monitore sind für den Einsatz unter harten Umgebungsbedingungen entwickelt. Alle Open frame Monitore können im erweiterten Temperaturbereich verwendet werden und haben eine staub- und spritzwassergeschützte Front (IP65 konform). Durch das robuste Stahlgehäuse sind die open frame Monitore bestens geschützt.
Spezifikationen:
- 15" LCD-Display
- optional kapazitiv oder resistiv Touch mit RS232 oder USB Interface
- optional Aluminium oder Edelstahl Front
- D-SUB VGA Eingang; optional DVI, S-Video, RCA Eingang
- optional allseitig IP65
- 230VAC Stromversorgung; optional 11-28VDC
- optional Glas-film-glas Touch oder Anti-Vandalismus Front
| System | |
| Power max | TBD |
| Power input | 12V DC |
| Optional | DC input 11~32V, RS232 touch |
| Display | |
| Size | 15" |
| Type | TFT-LCD |
| Resolution | 1024 x 768 |
| Aspect ratio | 4:3 |
| Max color | 262 K |
| Luminance | 350 cd/m² |
| Contrast ratio | 800:1 |
| Backlight lifetime | 50,000 h |
| Viewing angle | 150(H)/140(V) |
| Touch screen optional | Resistive touch, GFG |
| Touch interface | USB |
| VGA in | 1 |
| DVI in | Optional |
| S-Video | Optional |
| Mechanical | |
| Housing | Open-Frame |
| OSD | Rear |
| Mounting | Panel Mount/VESA 75 x 75 |
| Dimension | 357 x 291 x 56.2mm |
| Weight | 2.9 Kg |
| Environment | |
| Operating temperature | 0~50°C |
| Storage temperature | -20~60°C |
| Certification | CE / FCC Class A |
-
